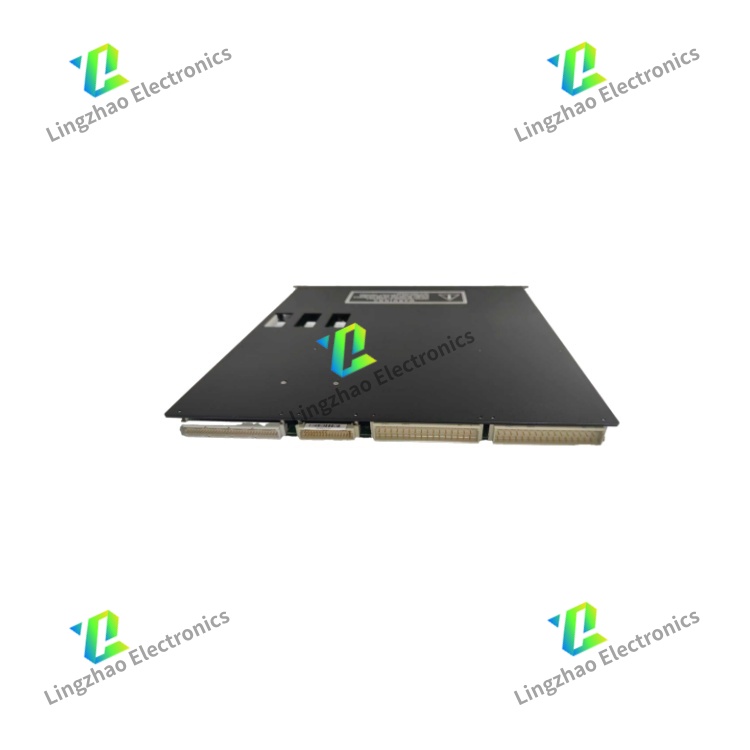

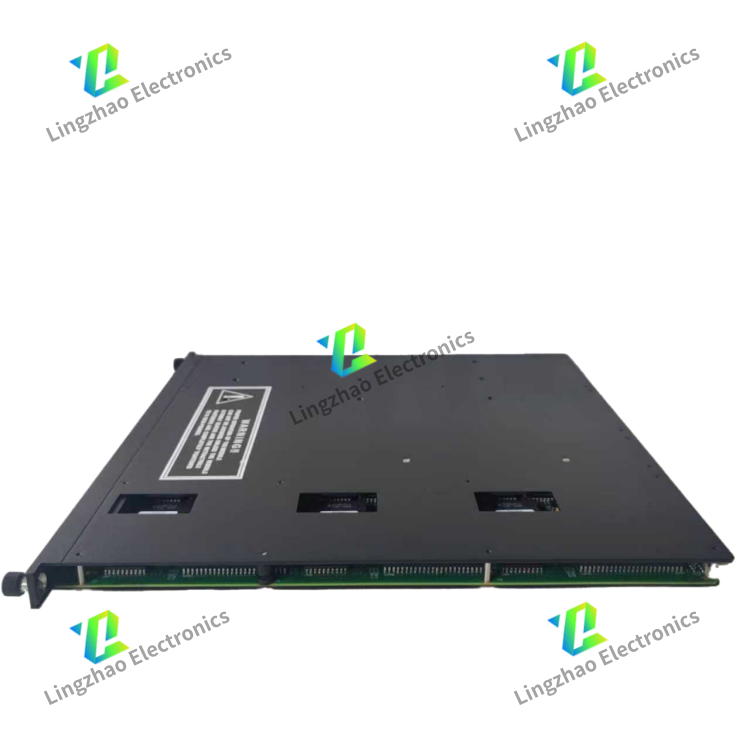

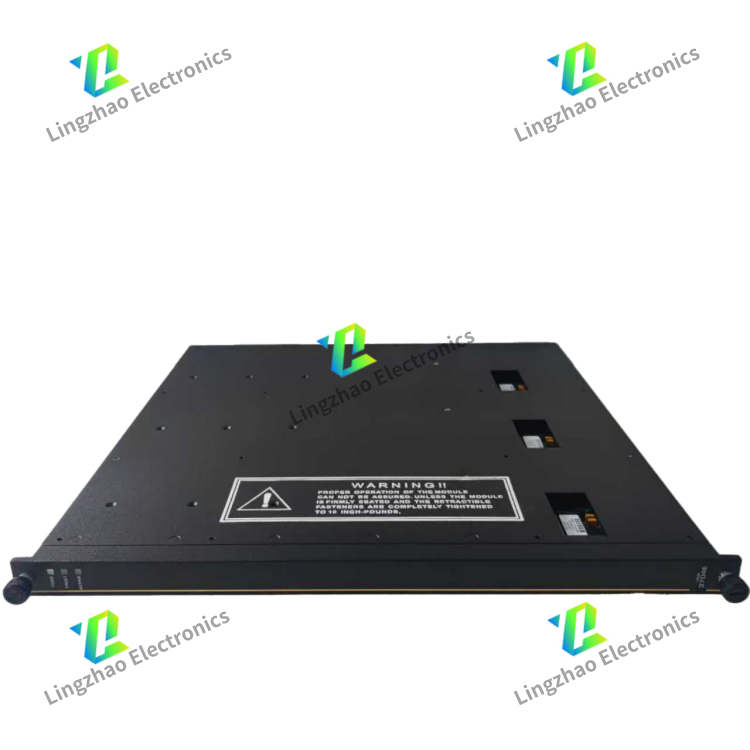

TRICONEX 3201 safety-grade communication module

The TRICONEX 3201 is a safety-grade communication module developed by Triconex (a brand under Rockwell Automation), specifically designed for Triconex Triple Modular Redundancy (TMR) safety control systems. It serves as a critical communication bridge between Triconex safety controllers and external devices or systems (such as DCS, SCADA, or other industrial control platforms), enabling secure and real-time data transmission for safety-critical applications. Below is its detailed information:

I. Core Functional Features

TMR Redundancy & SIL 3 Compliance
- Integrates with Triconex’s signature Triple Modular Redundancy (TMR) architecture, featuring three independent communication channels that operate in parallel. A 2-out-of-3 (2oo3) voting mechanism ensures that single-channel faults (e.g., communication interruptions, interface failures) do not disrupt data transmission, guaranteeing continuous operation of safety-related communication.
- Certified by TÜV to meet SIL 3 (Safety Integrity Level 3) requirements, compliant with IEC 61508 (general safety standards) and IEC 61511 (process industry safety standards). This makes it suitable for safety-critical communication scenarios, such as transmitting emergency shutdown (ESD) signals or fire & gas (F&G) alarm data.
Multi-Protocol Support for Versatile Connectivity
- Supports a range of mainstream industrial communication protocols to adapt to diverse external system environments:
  - Modbus RTU/ASCII: Enables communication with Modbus-enabled field devices (e.g., transmitters, valves) and legacy DCS systems via RS-485 serial links.
  - Triconex Proprietary Protocols: Facilitates seamless data exchange with other Triconex modules or systems (e.g., remote I/O racks, peer controllers) within the TMR network.
  - Serial Communication: Configurable baud rates (9600–115200 bps) and data formats (parity, stop bits) to match various industrial devices.
