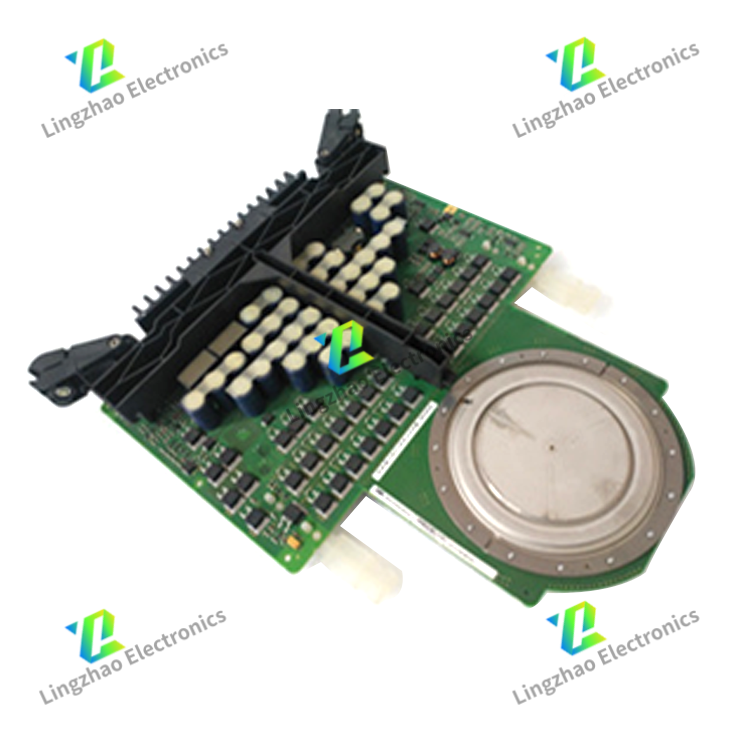

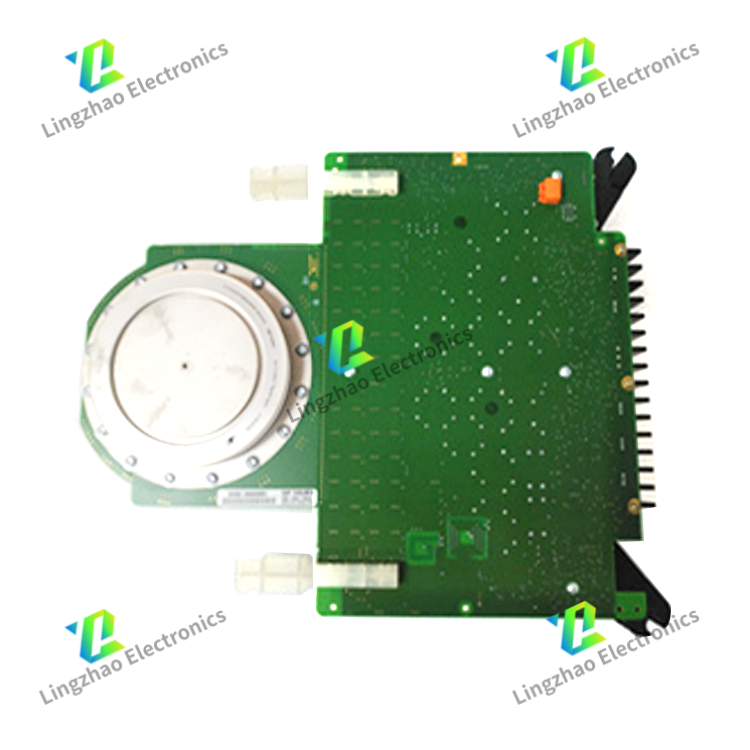

5SHY3545L0009 3BHB013085R0001 Integrated Gate Reversing Thyristor (IGCT) Module
5SHY3545L0009 (order number 3BHB013085R0001) is a high-performance Integrated Gate-Commutated Thyristor (IGCT) module launched by ABB, mainly used in high-power power electronic conversion systems. Here is its detailed information:
- Product Type: IGCT power module (asymmetric type)
- Rated Voltage: 4500V (blocking voltage)
- Rated Current: 3500A (average on-state current)
- Operating Junction Temperature Range: -40°C to +125°C
- Storage Temperature Range: -40°C to +150°C
- Gate Trigger Parameters:
Typical trigger voltage is 3V, typical trigger current is 200mA, with reliable gate control characteristics. - Package Type: Press-pack, featuring high mechanical strength and excellent heat dissipation performance, suitable for compact installation in high-power scenarios.
- On-state Surge Current: Capable of withstanding short-term high surges (specific values refer to the product manual, usually adapted to the transient overload requirements of industrial heavy-duty scenarios).
- Efficient Energy Conversion:
Combining the low on-state loss of thyristors with the fast switching capability of insulated gate devices, it features fast switching speed, which can significantly reduce switching losses and improve the overall efficiency of the system. - High Reliability Design:
The press-pack packaging enhances the module's vibration and shock resistance, making it suitable for harsh industrial environments such as metallurgy and mining. It also has good thermal cycle stability, extending its service life. - Simplified System Integration:
No need for complex snubber circuits, which can reduce the configuration of peripheral components, lower the complexity and cost of system design, and improve overall reliability. - Strong Electromagnetic Compatibility:
The optimized gate drive design gives it strong anti-electromagnetic interference capability, enabling stable operation in complex power grids or industrial electromagnetic environments.
- Industrial Drive Systems: As the core power device of medium-voltage frequency converters, it is used for speed regulation of large motors in industries such as metallurgy, petrochemicals, and mining, achieving high-precision speed control and energy-saving operation.
- Power System Equipment: Suitable for static var compensators (SVC), high-voltage rectifiers, etc., to improve the power factor of the power grid, stabilize voltage fluctuations, and enhance power quality.
- New Energy and Energy Storage: Can be used in wind power converters, high-power energy storage converters and other equipment to realize efficient grid connection of new energy power generation and bidirectional energy conversion with the power grid.
- Rail Transit and Special Power Supplies: Applicable to scenarios requiring precise control of high-power currents, such as traction converters and medium-frequency induction heating equipment.
With its high power density, stable performance, and wide adaptability, this module has become a key device in high-power power electronic systems, especially suitable for industrial scenarios with strict requirements on reliability and efficiency.
The company has multiple main brands, and if you have other brand requirements, you can also send them to customer service for inquiry.
