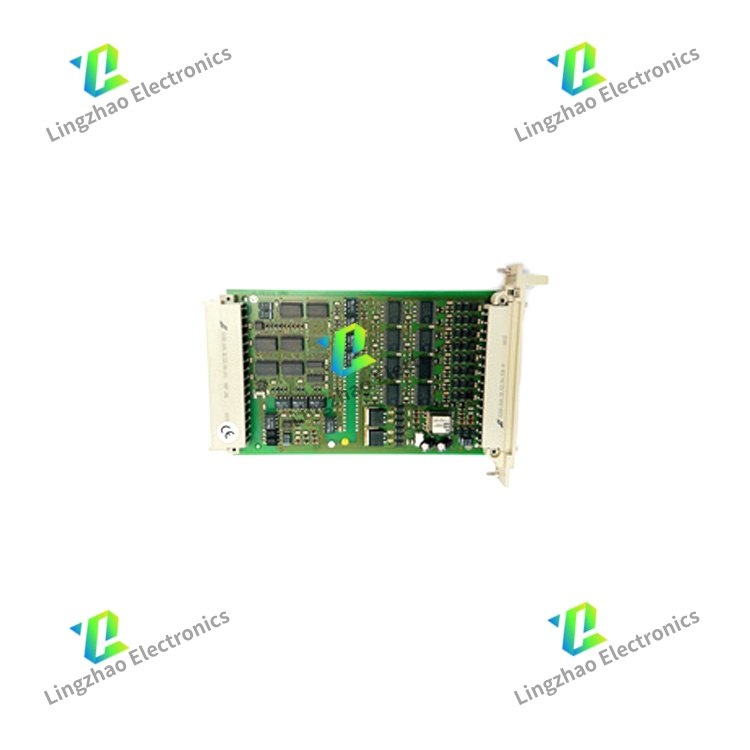

F6217 safety-related communication interface module

HIMA F6217 is a safety-related communication interface module under HIMA’s industrial safety system product lineup, specifically designed to enable secure data exchange between HIMA safety controllers (e.g., HIMatrix, HIMax) and third-party industrial devices (e.g., PLCs, DCS, SCADA systems). It focuses on breaking down communication barriers between "safe" and "non-safe" systems while maintaining high safety integrity, making it a key component for integrated safety control in industries like petrochemicals, power, and metallurgy. Below is its integrated detailed information based on official technical documents and mainstream supplier data:

1. Core Technical & Electrical Parameters

Parameter Category	Specific Details
Communication Protocols & Interfaces	- Main interfaces: 2 independent RS485 serial ports (full-duplex, baud rate configurable: 9600–115200 bps) and 1 Ethernet port (10/100Mbps, supports TCP/IP).- Supported protocols:- Serial: Modbus RTU (master/slave mode), PROFIBUS DP (slave mode, compatible with EN 50170).- Ethernet: Modbus TCP, OPC UA (safety-optimized version for secure data transmission).- Data transmission capacity: Maximum 1000 data points (input/output combined) for real-time signal exchange; supports cyclic data refresh (minimum cycle: 100ms) and event-triggered data transmission.
Electrical Specifications	- Power input: 24V DC (supplied by HIMA system backplane or redundant power modules), voltage tolerance ±10%.- Power consumption: ≤8W (normal operation, including dual-interface communication).- Isolation: Communication interface isolation ≥1500V DC (1 minute, between RS485/Ethernet ports and module internal circuits); suppresses electromagnetic interference (EMI) from industrial sites.- Protection: Built-in ESD protection (±15kV contact discharge) and surge protection (2kV for power lines); prevents damage from static or voltage spikes.
Physical & Environmental Indicators	- Dimensions: 120mm × 80mm × 30mm (standard HIMA module form factor, fits 19-inch industrial racks).- Weight: Approximately 0.4kg; compact design for dense cabinet installation.- Operating temperature: -20°C to 60°C (industrial-grade components, adapts to high-temperature workshops and low-temperature outdoor control cabinets).- Storage temperature: -40°C to 85°C; Humidity tolerance: 5%–95% RH (non-condensing).- Protection class: IP20 (dust-proof, for cabinet-mounted use); Anti-vibration: 5g (10–2000Hz), complying with IEC 60068-2 industrial mechanical standards.
