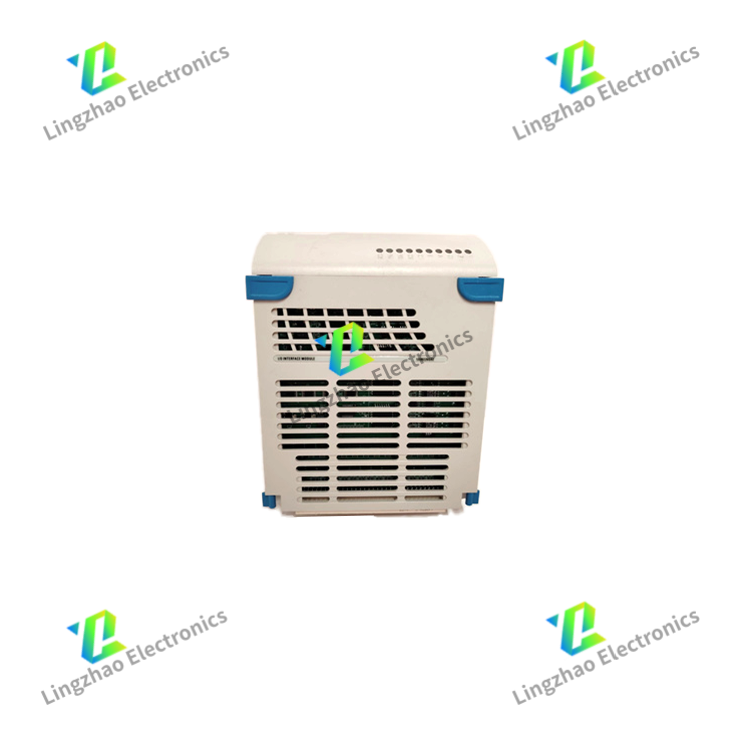

5X00106G02 digital input module

The 5X00106G02 is a digital input module developed by Westinghouse (now integrated into Emerson Automation Solutions) for its Ovation Distributed Control System (DCS). It specializes in collecting discrete digital signals from industrial field devices (e.g., limit switches, proximity sensors, and status contacts) and transmitting them to the DCS for real-time status monitoring and logic interlock control, making it a core component for discrete signal acquisition in harsh industrial environments. Below is its detailed information:

1. Core Technical Specifications

Parameter	Details
Input Channels	16 independent discrete input channels, divided into 4 isolation groups (4 channels per group) to enhance anti-interference performance.
Supported Input Signals	Dry contact signals (compatible with normally open/closed mechanical switches); DC voltage signals: 24V DC (typical), with "on" threshold: 18–30V DC and "off" threshold: 0–5V DC.
Input Response Time	≤1ms (captures transient switching signals such as emergency stop triggers to ensure timely DCS response).
Input Current	≤10mA per channel (low power consumption, compatible with most field sensors and switches).
Power Supply	24V DC ±10% (power consumption ≤5W, fully compatible with Ovation DCS rack power modules).
Isolation Rating	Group-to-group isolation: ≥600V AC (1 minute); Module-to-DCS backplane isolation: ≥2500V AC (1 minute), effectively suppressing ground loops and electromagnetic interference (EMI).
Physical Dimensions	Standard Ovation module form factor: approx. 100mm × 80mm × 45mm (L×W×H); weight: ~0.36kg (compact, suitable for dense rack installation).
