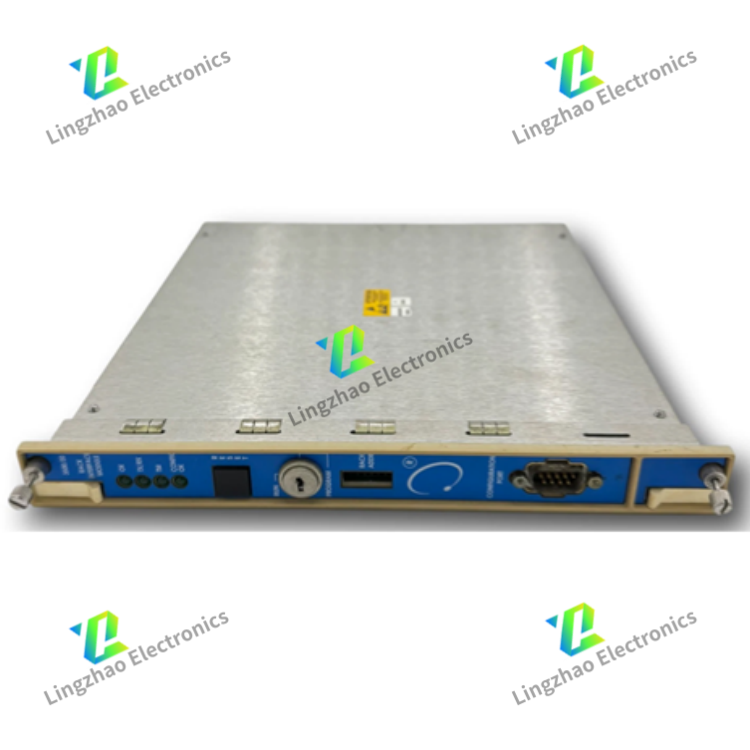

3500/42M 140734-02 Proximitor seismic monitor
The 3500/42M 140734-02 is a professional proximitor seismic monitor launched by Bently Nevada, mainly used for mechanical equipment protection and condition monitoring in industrial environments. Below is its detailed information:
- Brand: Bently Nevada
- Model: 3500/42M
- Part Number: 140734-02
- Type: Proximitor Seismic Monitor
- Origin: United States
- Multi-channel Monitoring: It can accommodate up to four sensors and simultaneously monitor multiple machine parameters, including radial vibration, thrust position, differential expansion, eccentricity, acceleration, velocity, absolute shaft vibration, and circular acceptable regions.
- Signal Conditioning: It can condition signals from various types of sensors, supporting inputs from proximity, velocity, or acceleration sensors.
- Customizable Alarms: Users can programmatically set alarm thresholds. When monitored parameters exceed the set values, it promptly alerts operators to potential issues.
- Data Provision: It provides critical machine information, such as vibration levels, bearing temperature, and lubricating oil pressure, offering important references for operation and maintenance teams.
- Inputs: Accepts signals from 1 to 4 displacement, velocity, or acceleration sensors. The standard I/O input impedance is 10 kΩ, and the effective impedance of Triple Modular Redundancy (TMR) I/O is 50 kΩ.
- Signal Range: The input signal range is 4 V peak-to-peak, and the frequency range is 2 Hz to 20 kHz.
- Accuracy & Resolution: The accuracy is ±1% of the full scale, and the resolution is 16 bits.
- Outputs: The front panel is equipped with LED indicators such as OK, TX/RX, and Bypass. The sensor buffer output impedance is 550 Ω, the absolute shaft vibration buffer output impedance is 300 Ω, and it also has 4-20 mA analog output and RS-485 digital output.
- Power Supply: The input power supply is 18-30 Vdc, with a maximum power consumption of 2.5 W.
The company has multiple main brands, and if you have other brand requirements, you can also send them to customer service for inquiry.
